Description

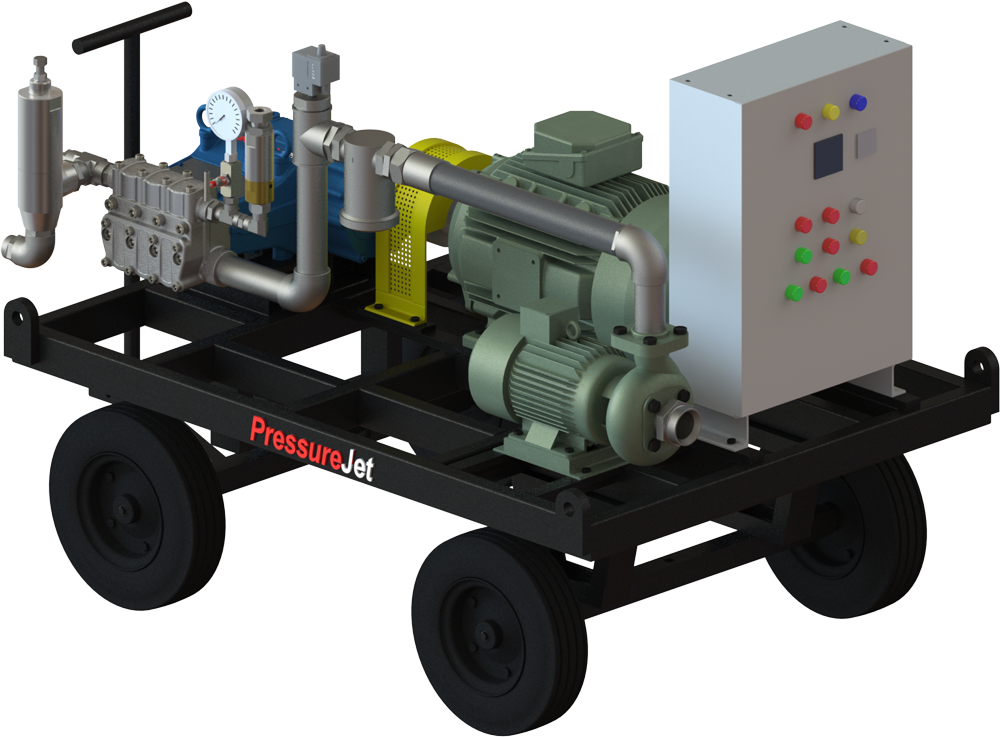

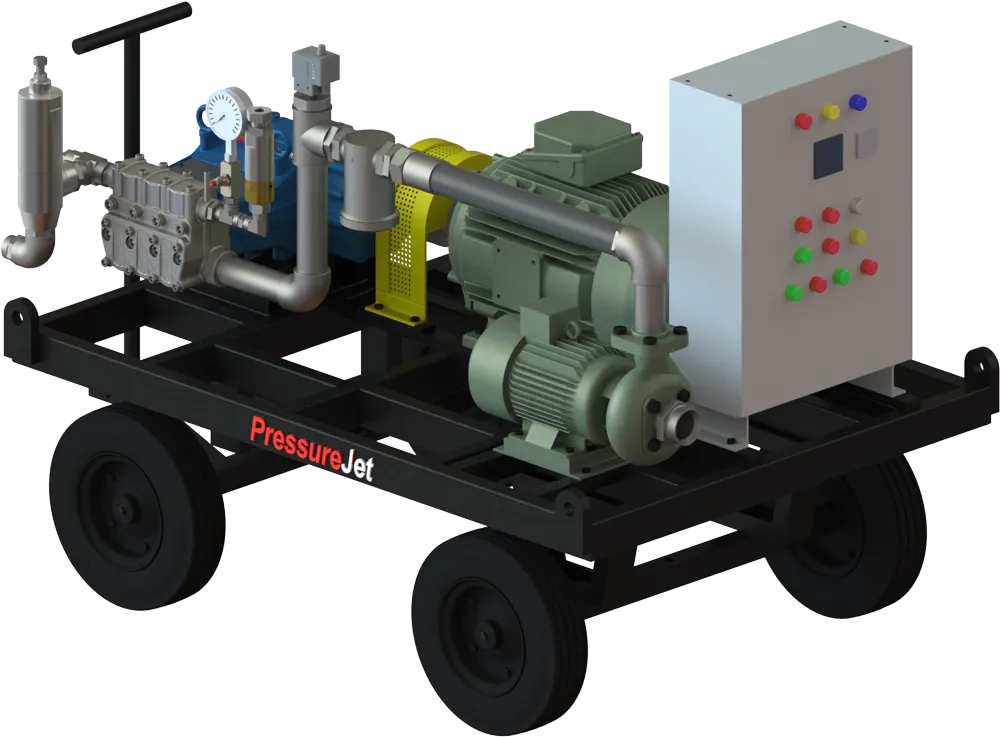

The Electric Motor or Diesel Engine Driven Hydro Test System is engineered for hydrostatic pressure testing applications that demand high pressure with low flow rate. The system is capable of delivering pressures up to 420 bar, with a controlled flow rate range of 18 LPM to 24 LPM, ensuring safe, precise, and reliable pressure testing.
The system is powered by an electric motor or diesel engine rated between 20 HP and 30 HP, making it suitable for both indoor testing facilities and field applications where electrical power may be limited or unavailable.
This hydro test system is widely used for testing:
Valves
Pipes and Tubes
Pressure Vessels
Heat Exchanger Tubes
Boilers
Gas and Hydraulic Cylinders
Equipped with a high-pressure reciprocating plunger pump, the system offers:
Accurate pressure control and smooth pressure buildup
Excellent pressure holding capability
High volumetric efficiency at elevated pressures
Reduced water consumption due to low-flow operation
Designed to meet stringent industrial testing requirements, this system is ideal for hydro testing applications where pressure requirements are up to 420 bar and controlled low flow is essential for test accuracy and safety.
Specifications
| Driver Type | Electric Motor Driven, Diesel Engine Driven,PTO driven |
|---|---|
| Power Supply | 3 Phase |
| Bare Pump Size | 615 X 513 X 200 mm |
| Oil Grade | Gear Oil 220 |
| Inlet Pressure | Flooded to 2 Bar |
| Outlet Connection | 1” BSPF |
| Liquid End Material | Stainless Steel |
| Working Fluid Temp | 60 °C |
| Inlet Connection | 2" BSPF |
| Oil Capacity | 5 Ltr. |
| Bare Pump Weight | 110 Kg. |
